Discover our

Aluminum Awning Windows

Ventilation, protection, and flexibility for modern window design

REQUEST NOW

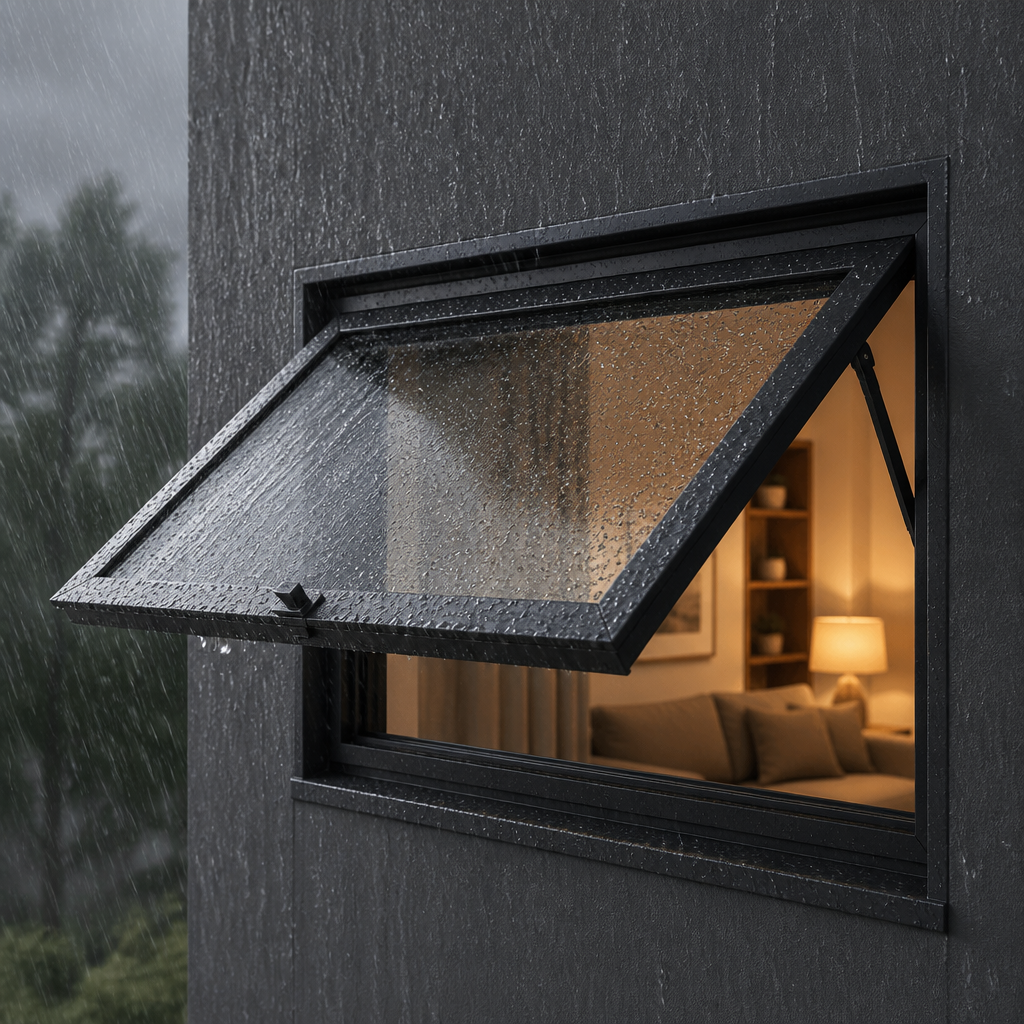

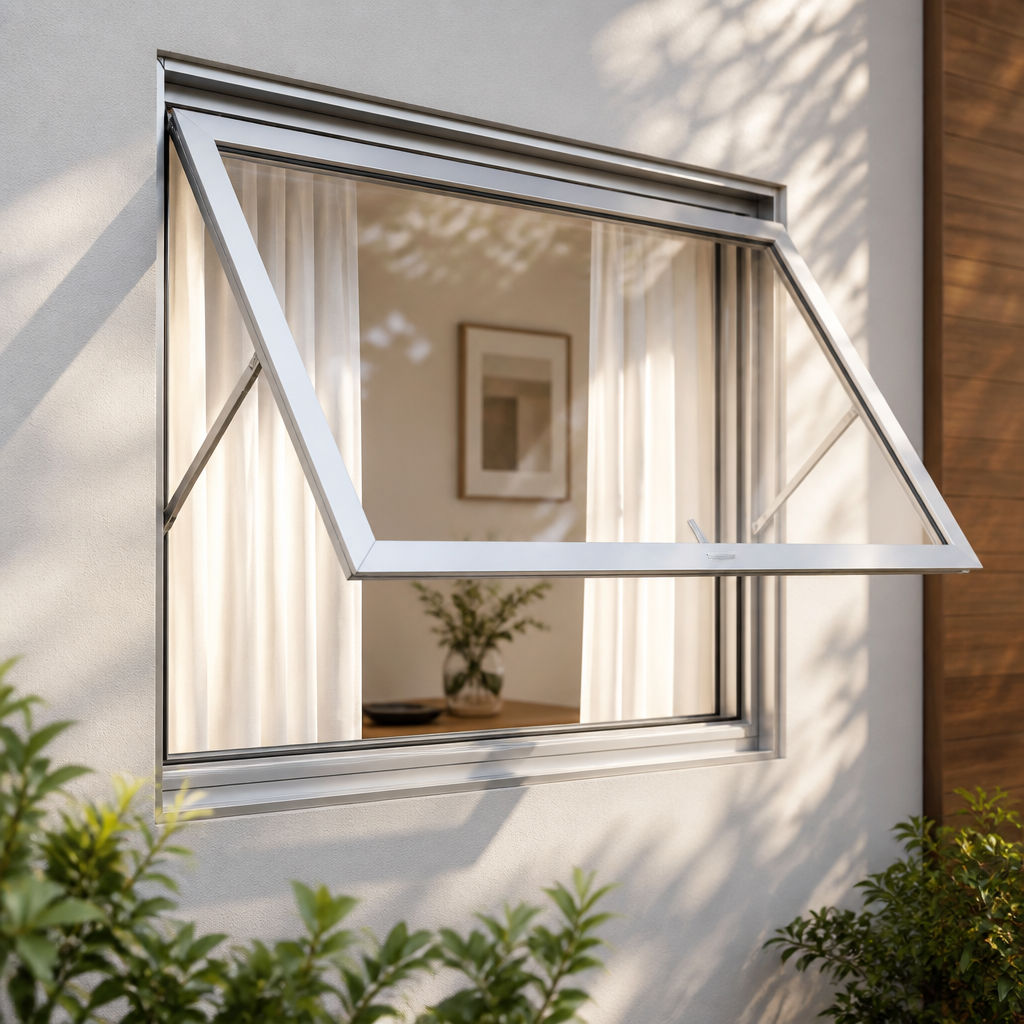

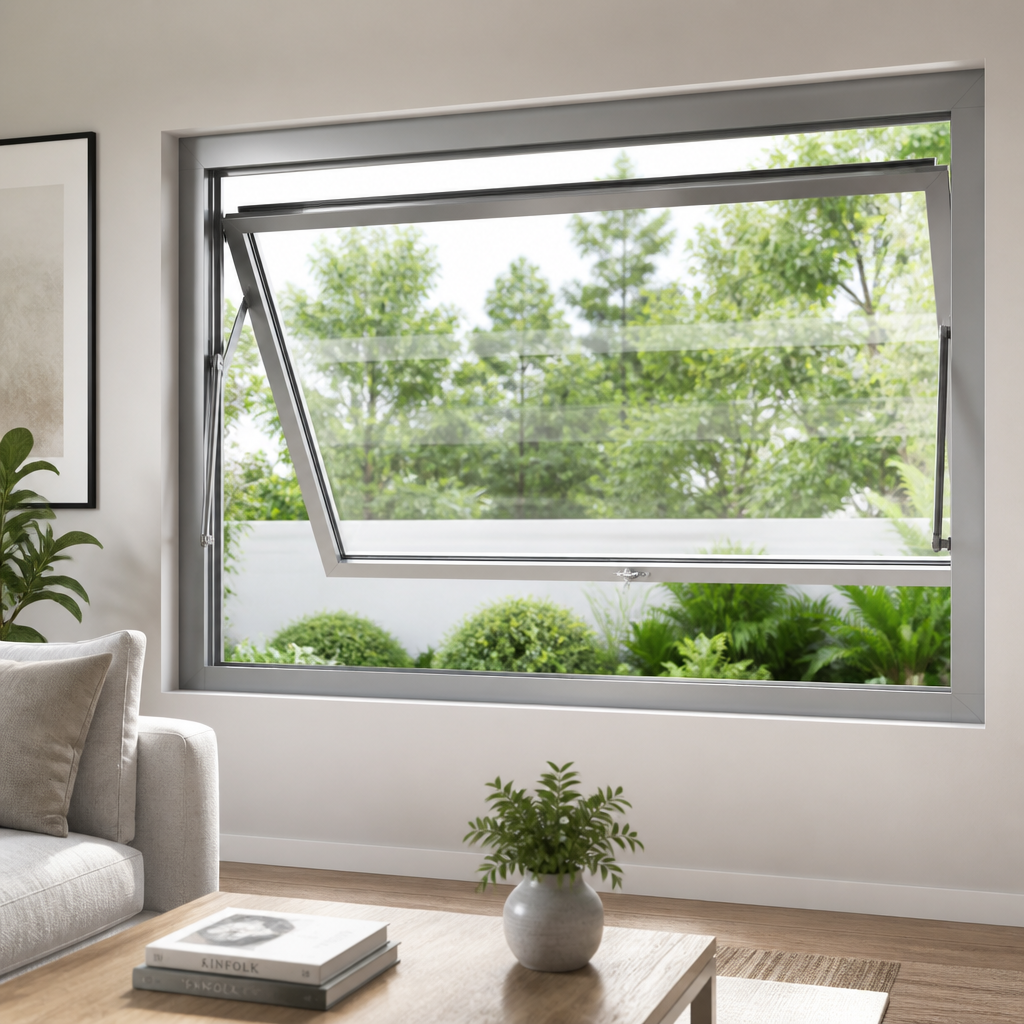

Awning windows are a practical solution for projects that need ventilation without overexposing the opening. Because they are hinged at the top and open outward, they allow airflow while helping protect the interior from light rain and exterior exposure.

This makes them a strong fit for kitchens, bathrooms, offices, and other spaces where controlled ventilation matters. They also work especially well in modern façades that need a clean look without relying on large operable units.

🌬️ Wide & Effective Ventilation

Side-hinged design opens fully outward, maximizing airflow and everyday comfort in residential and commercial spaces.

✅ Tested Performance Standards

Certified under AAMA, ASTM, and CSA standards with a U-Factor of 0.37 and proven resistance to air, water, and structural loads.

🏗️ Flexible Installation Options

Available in Block Frame and Nail Fin configurations to adapt to masonry, wood, or metal stud construction methods.

Why choose awning windows

Awning windows are often specified when a project needs a balance of airflow, usability, and exterior protection. Their operating style makes them useful in both residential and commercial applications, especially where the opening needs to stay practical and easy to manage day to day.

Key benefits include:



  • Ventilation with added protection during light rain

  • A clean aluminum profile for modern façades

  • Practical operation for smaller or controlled openings

  • Compatibility with larger glazed compositions

  • Flexible use across residential and commercial projects

A smart combination with fixed windows

Awning windows can also be paired with fixed windows to create a more balanced window package. This approach allows larger glass areas for daylight and views, while keeping operable sections where ventilation is actually needed.

It is a useful solution for projects that want a more consistent façade composition without making every opening fully operable.

Glazing compatibility

The system is designed to accept 1” insulating glass units and can also be configured with annealed glass or impact-resistant glazing, depending on project requirements.

This gives architects, builders, and specifiers more flexibility when balancing energy efficiency, safety, weather exposure, and overall system performance.



Tested for key performance standards

Awning windows within this system have been tested under recognized North American standards* for air leakage, water penetration, thermal performance, and structural load resistance.

Testing standards include:

  • AAMA / WDMA / CSA 101 / I.S.2 / A440
  • ASTM E331 / ASTM E547
  • AAMA 1503-09
  • ASTM E283-04 (2012)
  • ASTM E547-00 (2009)
  • ASTM E330-14

Representative performance values include:



Representative performance values include:

U-Factor: 0.37 Btu/hr·ft²·°F

Water penetration: None @ DP15 – 360 Pa

Air leakage resistance: ≤ 0.3 cfm/ft² @ 6.27 psf (300 Pa)

Uniform load structural performance: ± DP15 – 2400 Pa

Finishes and custom options

To fit a range of architectural styles, the system is available in:

Clear anodized

Bronze anodized

Custom painted finishes

Additional options include:

Custom grids

Custom screens

These choices make it easier to adapt the window package to both the technical and visual goals of the project.

Explore aluminum awning windows for your project

If your project calls for ventilation, weather protection, and a more flexible aluminum window system, awning windows are a strong option on their own and even more effective when combined with fixed windows.
